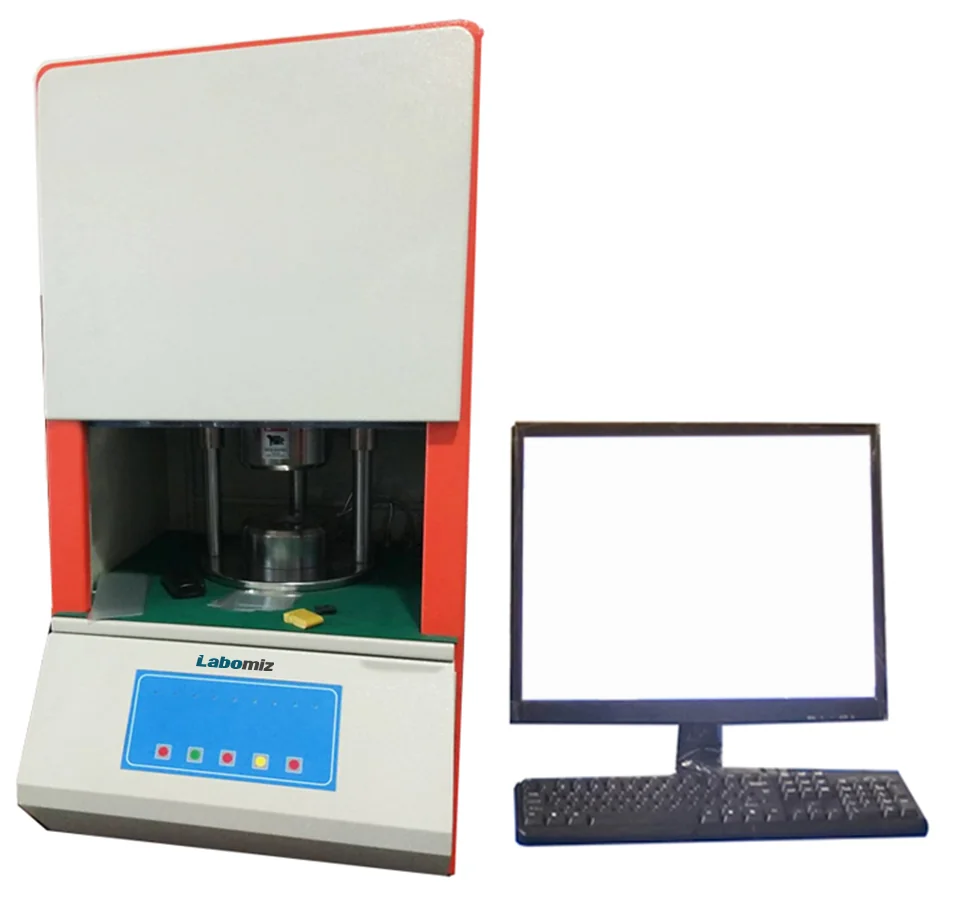

Mooney Viscometer MRMV-1A
Model: MRMV-1A · Category: Viscometers
Mooney viscometer MRMV-1A is a microprocessor based PID controlled viscometer for measuring changes in rubber and plastic elastomers. The rotating spindle and heated dies fundamentally produces a controlled test environment with temperature maintenance.
Specifications
| Temperature range | RT ~ 200 °C |
|---|---|
| Measurement range of torque | 0 mV ~ 200 mV |
| Temperature fluctuation in die | ≤ ± 0.1 °C |
| Temperature resolution | 0.1 °C |
| Temperature increase rate | 25 °C / min |
| Torque resolution | 0.01 mV |
| Rotor frequency | 2 rpm ± 0.02 rpm |
| PID control temperature | ± 0.1 °C |
| Power supply | 220 V; 50 Hz |
| Dimensions | 650 × 650 × 1100 mm |
| Weight | 93 kg |
Features
| Operational keys on front panel for process accessibility |
| Separate plate temperature control between the spindle and the dies |
| Adjustable temperature range |
| Transparent front window for visual process monitoring |
Applications
| No. | Item |
|---|---|
| 1 | Used in the complete production process of rubber and plastic elastomers in various industries. |
