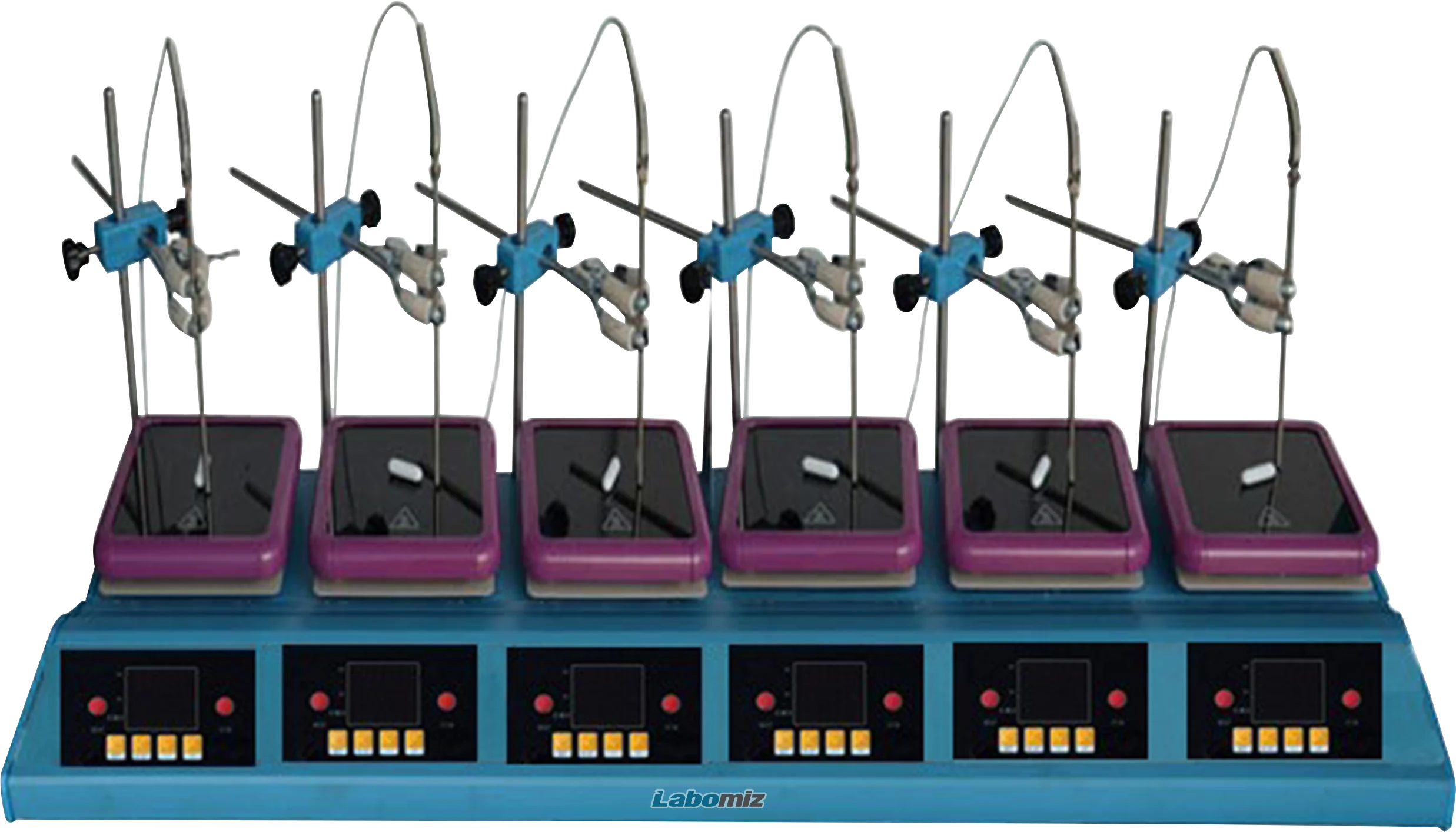

6-Position hotplate MTHP-4B
Model: MTHP-4B · Category: Hotplates
6-Position hotplate MTHP-4B is a ceramic top hotplate with a PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and it contains an outer thermo that measures and controls the liquid temperature value together with the front panel. The inner thermo controls and measures the hotplate stirrer temperature.
Specifications
| Temperature | 400 °C |
|---|---|
| Ceramic plate dimension | 180 mm × 180 mm |
| Power | 550 W |
| Temperature accuracy | ± 1 °C |
| Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
Features
| Continuous working time |
| PID controlled temperature |
| Digital display |
Applications
| No. | Item |
|---|---|
| 1 | Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields. |
Standard Accessories
| Accessories No | Accessories | Quantity |
|---|---|---|
| A1 | Removable holder | 6 |
| A2 | Clamp with screw | 6 |
| A3 | Inner thermocouple (4 spin) | 6 |
| A4 | Outer thermocouple (4 spin) | 6 |
| A6 | Stir bar | 6 |
| A7 | Four-finger Extension Clamp. Length300mm | 6 |
