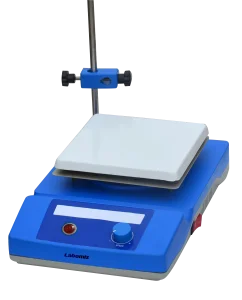

Standard hot plate MSHP-1A
Model: MSHP-1A · Category: Hotplates
Standard hot plate MSHP-1A is a ceramic hot plate with a PID controlled temperature of 400 °C for uniform heat distribution. Features a heating capacity for flasks ranging from 50 ml to 1000 ml. Inner and outer temperature sensor adjustment can be made.
Specifications
| Heat capacity | 50 ml ̴ 1 L |
|---|---|
| Ceramic plate dimensions | 140 mm × 140 mm |
| Power | 260 W |
| Temperature | 400 °C |
| Temperature accuracy | ± 5 °C |
| Voltage | 160 V ̴ 240 V, 110 V ̴ 12 V |
| Weight | 3.5 kg |
Features
| Continuous working time |
| PID controlled temperature |
| Scale temperature display |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
