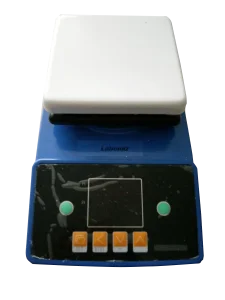

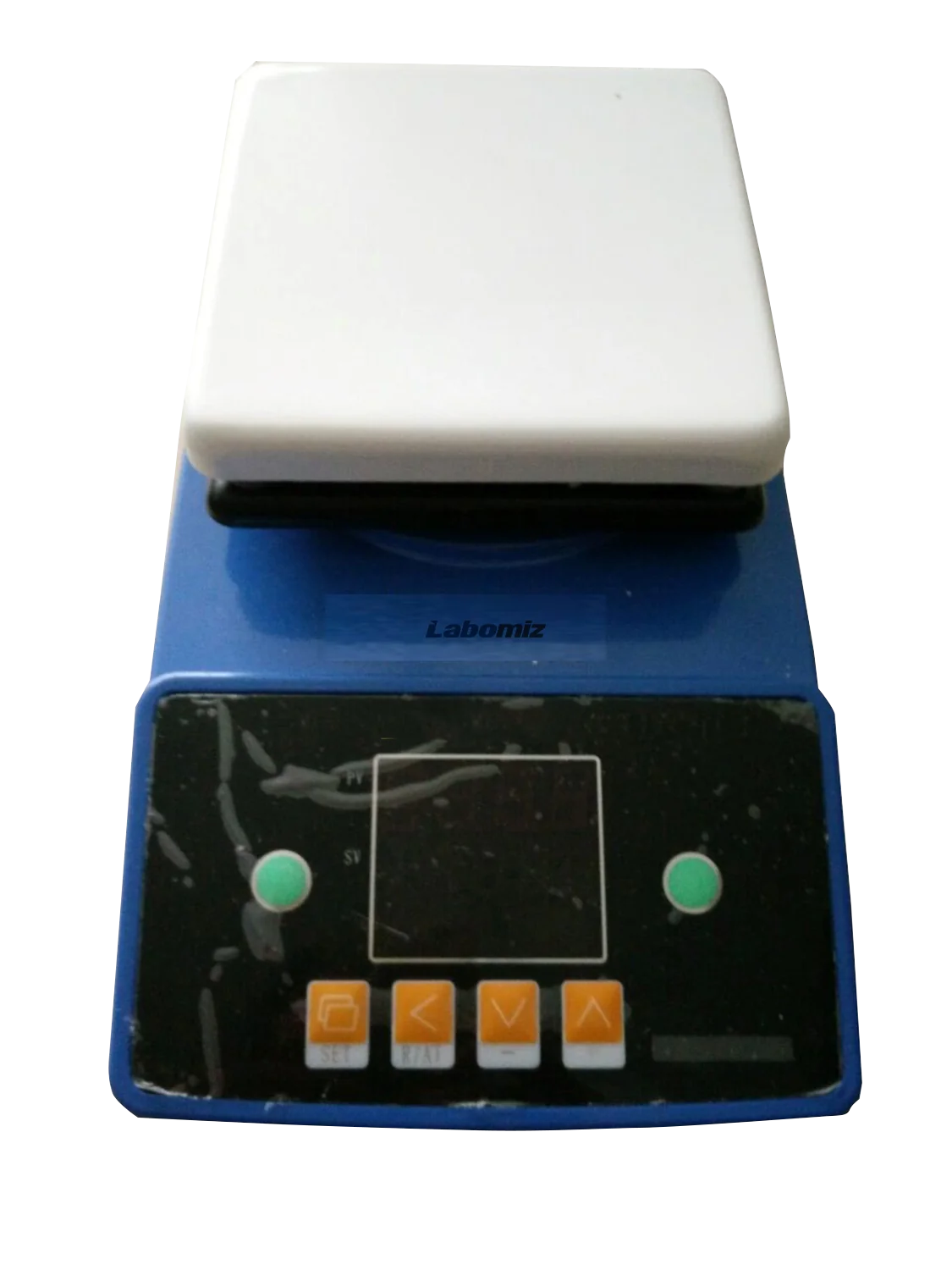

Digital Display Ceramic Hotplate MTHP-5D
Model: MTHP-5D · Category: Hotplates
Digital display ceramic hotplate MTHP-5D is an intelligent hot plate with a PID controlled temperature of 400 °C for uniform heat distribution. Features a heating capacity for flasks ranging from 50 ml to 15 L. It offers digital temperature control and it contains an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple controls, and measures the hotplate stirrer temperature.
Specifications
| Heat capacity | 50 ml ̴15 L |
|---|---|
| Ceramic plate dimension | 280 mm × 280 mm |
| Power | 750 W |
| Temperature | 400 °C |
| Temperature accuracy | ± 1 °C |
| Voltage | 160 V ̴240 V, 110 V ̴120 V |
| Weight | 9.3 kg |
Features
| Continuous working time |
| PID controlled temperature |
| Digital display |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessories No | Accessories | Quantity |
|---|---|---|
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple 4 -spin | 1 |
| A4 | Outer Thermocouple 4-spins | 1 |
