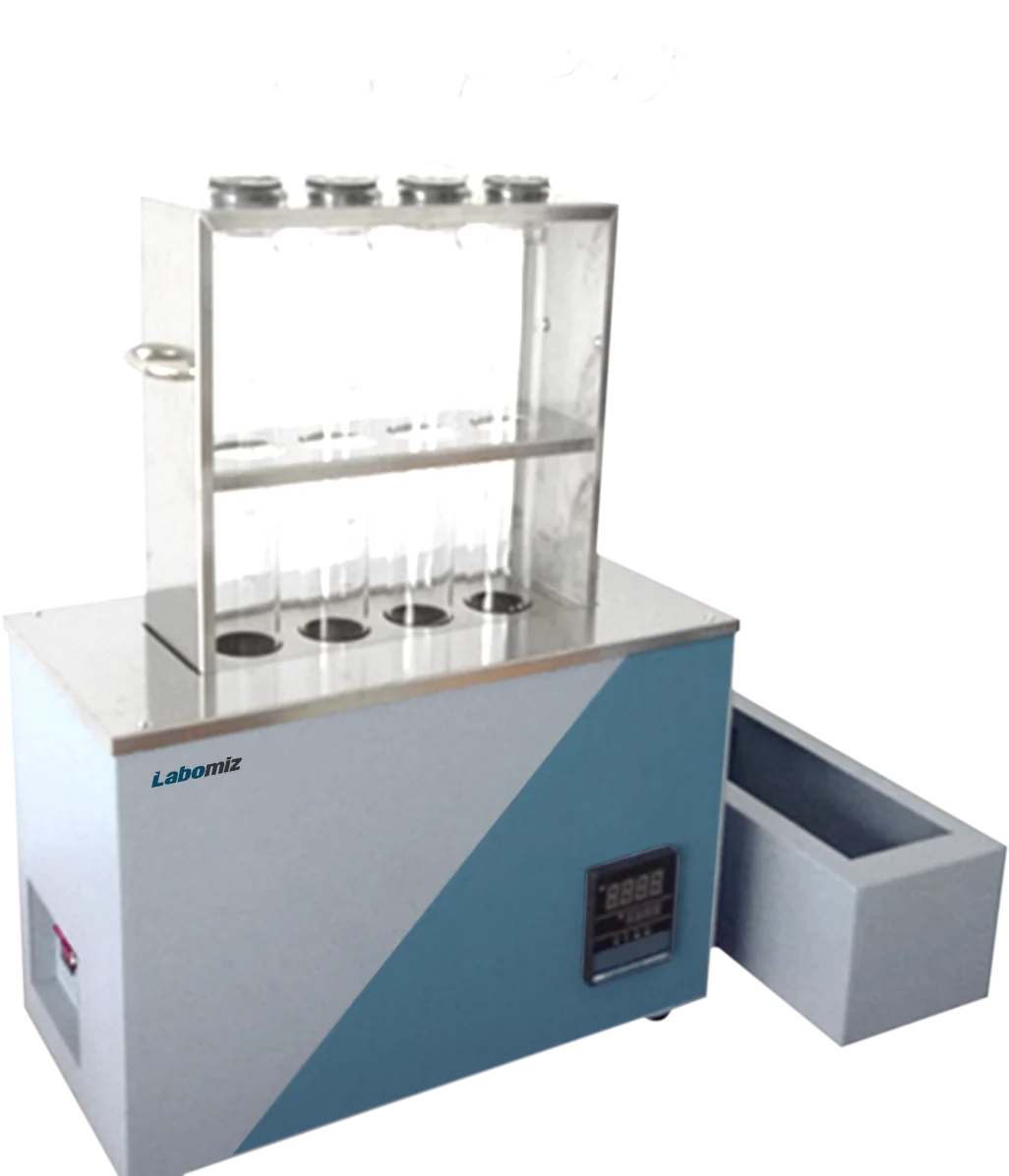

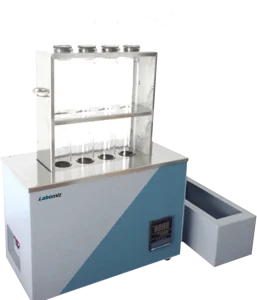

Digestion Furnace MDF-1C
Model: MDF-1C · Category: Kjeldahl Systems
Digestion furnace MDF-1C is a type C digital temperature control unit with multi protection function ensuring operator safety. High efficiency quartz infrared heating pipe provides auxiliary conduction for homogenous digestion of sample. Built in dual shell design with air thermal insulation and aluminium silicate thermal insulation to generate dual insulation effect.
Specifications
| Sample holes | 20 |
|---|---|
| Heating module material | Infrared |
| Temperature control mode | Digital |
| Temperature control ranges | RT ~ 600 °C |
| Temperature control accuracy | ± 1 °C |
| Measurement range | 0.1 mgN ~ 200 mgN |
| Digestion time(according to sample quantity) | 0.1 mgN ~ 200 mgN |
| Digestion pipe capacity | 300 ml |
| Power | 2.5 kW |
| Operating voltage | AC 220 V/50 Hz |
| Dimensions | 500 x 300 x 600 mm |
| Weight | 15 kg |
Features
| Microprocessor controlled temperature system |
| High thermal efficiency |
| Long life quartz infrared heating pipe |
| Plastic spray steel box prevents mechanical surface damage |
| Anticorrosion stainless steel working area |
| Multiple protection function (overpressure, overheating and overcurrent) |
Applications
Used in food and beverage, pharmaceutical, environmental, chemical, biotechnology industries for uniform digestion of bulk samples to enhance speed of Kjeldahl procedures.
