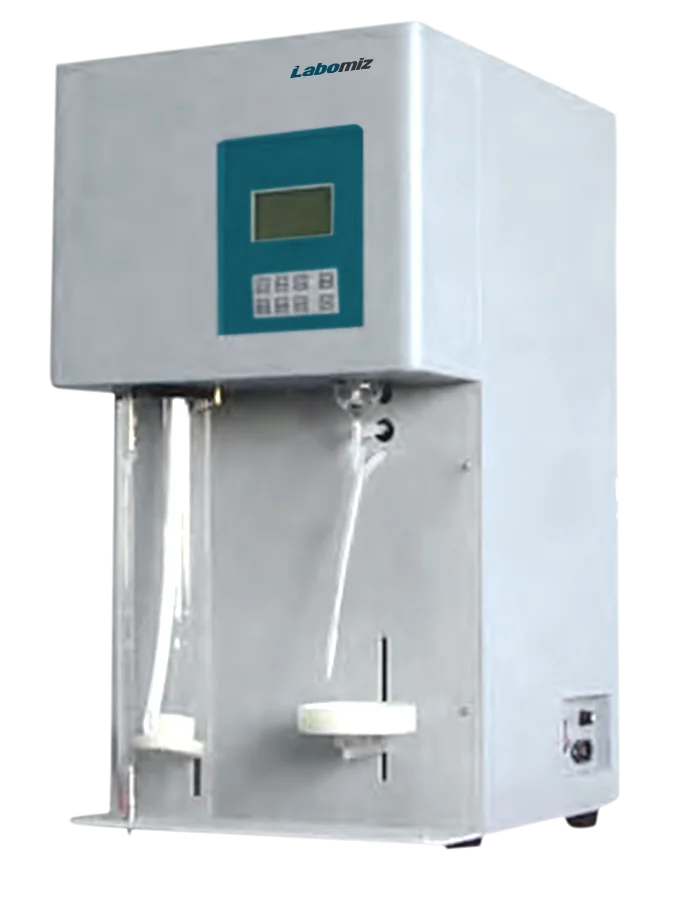

Automatic Kjeldahl Distillation Unit MAKD-1A
Model: MAKD-1A · Category: Kjeldahl Systems
Automatic kjeldahl distillation unit MAKD-1A is a microprocessor controlled automated distillation unit with precise measurement accuracy. Incorporated with large LCD screen display with automated function of acid, alkali addition and distillation time set up for user convenience. ABS anticorrosive board prevents corrosion from chemical reagents and avoids mechanical damage of the unit.
Specifications
| Measuring range | 0.1 mgN ~ 200 mgN (mg nitrogen) |
|---|---|
| Distillation speed (according to sample amount) | 5 min/sample ~ 15 min/sample |
| Recovery rate (relative error, include digestion process) | ≥ 99.5 % |
| Repetition rate | relative standard deviation < ± 1% |
| Sample capacity | Solid: 0.2 g ~ 2 g Semisolid: 2 g ~ 5 g Liquid: 10 mL ~ 25 mL |
| Cooling water consumption | 3 L/min |
| Water in mode | Tap water and distilled water |
| Water supply | water pressure > 1.5 MPa water temperature < 20 °C |
| Power | 1000 W |
| Voltage | AC 220 V/50 Hz |
| Dimensions | 430 x 360 x 670 mm |
| Weight | 25 kg |
Features
| Automatic working mode (consistent results) |
| Control mode (Manual and automatic) as per user need |
| Operational mode - LCD display and touch buttons |
| ABS anticorrosive working area (acid and alkali proof) |
| Control of distillation, water addition, water level and water supply cutoff (automated) |
| Material: plastic spray steel box |
| Power off function (fault detection) |
| Alarm: steam generator water shortage, water level fault detection |
| Protective cover while distilling (operator safety) |
| Removable drip tray (easy cleaning) |
Applications
Used in food and feed, environmental monitoring, quality control, research, biotechnology, pharmaceutical industries for protein estimation, analysis of soil, water, test of ammonium, fatty acids, volatile acids, phenols etc.
