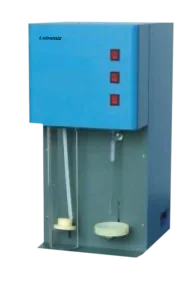

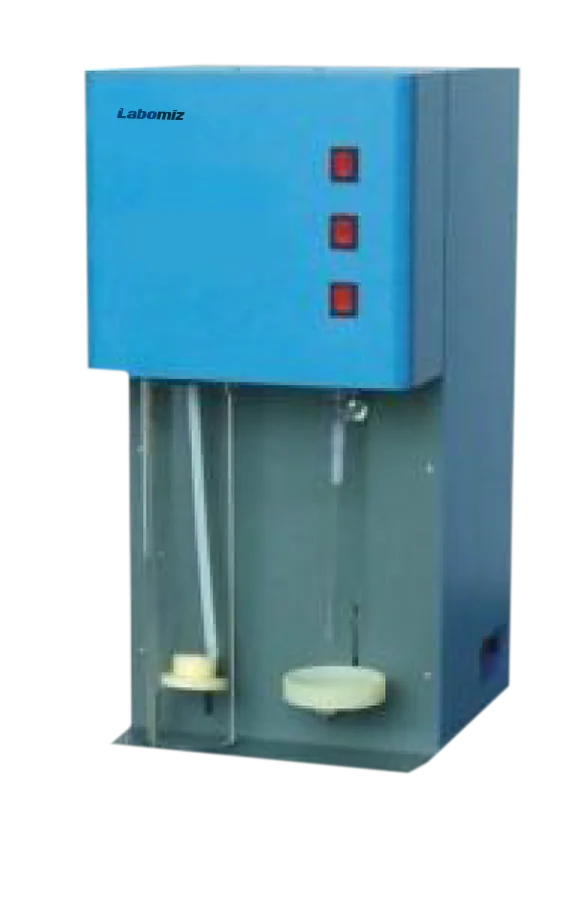

Semi-automatic Kjeldahl Distillation Unit MSKD-1A
Model: MSKD-1A · Category: Kjeldahl Systems
Semi-automatic kjeldahl distillation unit MSKD-1A is a microprocessor controlled semi-automated distillation unit with precise measurement accuracy. Built in steam generator with automation for distillation control, water addition, water level control and water supply cutoff ensures user-friendly interface. ABS anticorrosive board prevents corrosion from chemical reagents and avoids mechanical damage of the unit.
Specifications
| Measuring range | 0.1 mgN ~ 200 mgN (nitrogen content 0.1% - 99%). |
|---|---|
| Distillation speed (according to sample amount) | 5 min/sample ~ 15 min/sample |
| Recovery rate (relative error, include digestion process) | ≥ 99 % |
| Repetition rate | relative standard deviation < ± 1% |
| Sample capacity | Solid: 0.2 g ~ 2 g Semisolid: 2 g ~ 5 g Liquid: 10 mL ~ 25 mL |
| Cooling water consumption | 3 L/min |
| Water in mode | Tap water and distilled water |
| Water supply | water pressure > 1.5 MPa water temperature < 20 °C |
| Power | 1000 W |
| Voltage | AC 220 V/50 Hz |
| Dimensions | 380 x 320 x 670 mm |
| Weight | 20 kg |
Features
| Semi-automatic working mode (consistent results) |
| Manual addition of acid, alkali and distill |
| Alarm: steam generator water shortage, water level fault detection |
| Power off function (fault detection) |
| Material: plastic spray steel box |
| Less requirement of tap water source |
| Protective cover while distilling (operator safety) |
| Removable drip tray (easy cleaning) |
Applications
Used in food and feed, environmental monitoring, quality control, research, biotechnology, pharmaceutical industries for protein estimation, analysis of soil, water, test of ammonium, fatty acids, volatile acids, phenols etc.
